| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF700PES |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*23*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | AI サーバー用熱シリコーン パッド 7.5W 高伝導性放熱シート | 工事: | セラミック充填シリコンエラストマー |
|---|---|---|---|
| 厚さの範囲: | 0.5～5.0mmT | キーワード: | サーマルパッド |
| 変電気変数 @1MHz: | 7.6 | 色: | グレー |
| 耐電圧（V/mm)）: | ≥5500 | 火災評価: | UL94 V-0 |
| アプリケーション: | AI サーバー AI プロセッサー | 熱伝導率: | 7.5W/m-K |

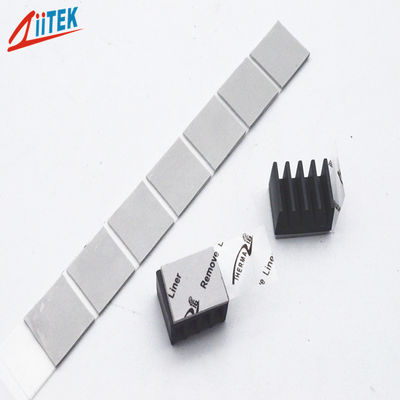

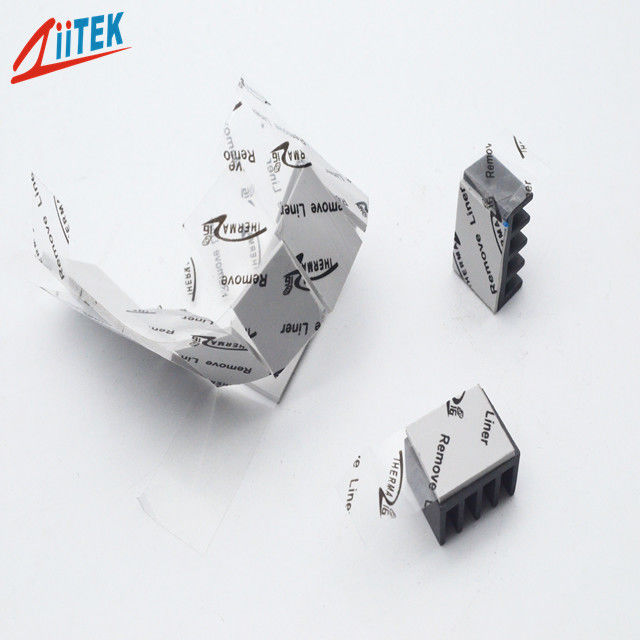

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
The TIF®700PES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and highest heat flux electronic components.
Features:
> High thermal conductivity: 7.5W/mK
> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
Applications
> AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
| Typical Properties of TIF®700PES Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.020~0.030 (0.50~0.5) |
0.040~0.200 (1.0~5.0) | ASTM D374 |
| Hardness (Shore OO) | 60 | 10 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.020"(0.5 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
