| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | RoHS |
| モデル番号: | TIR200 |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10USD/pcs |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |
| 製品名: | 通信・電気機器用極薄・軽量熱黒鉛シート | 推奨動作温度 (°C): | -40℃ ~400℃ |
|---|---|---|---|
| キーワード: | 熱伝導グラファイトシート | 熱伝導性: | 1600W/mK |
| 色: | 黒 | 応用: | 通信および電気機器 |
| 密度: | 1.9g/cc | 厚さ: | 0.017/0.025/0.040mm |
| 特徴: | 従来の金属をはるかに超える超高熱伝導率 |

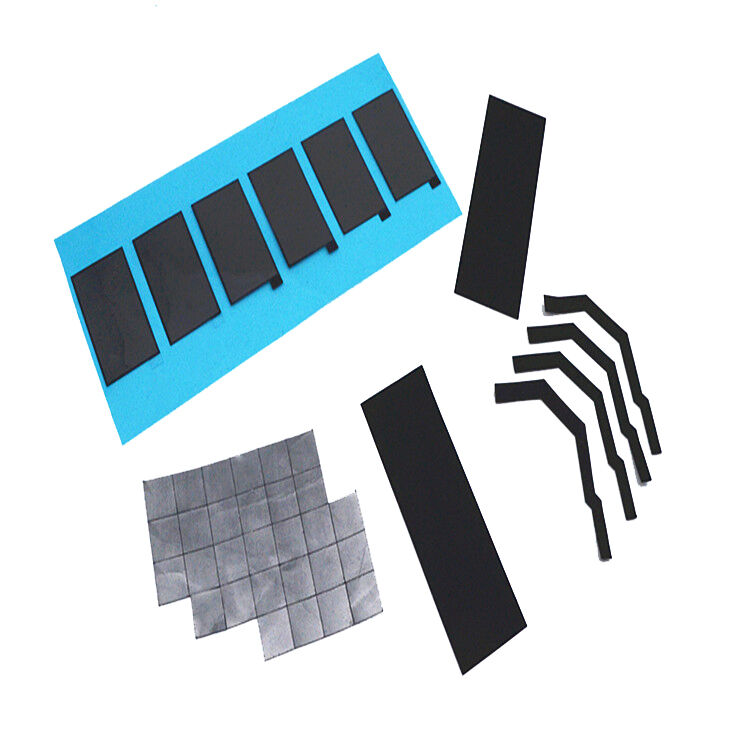

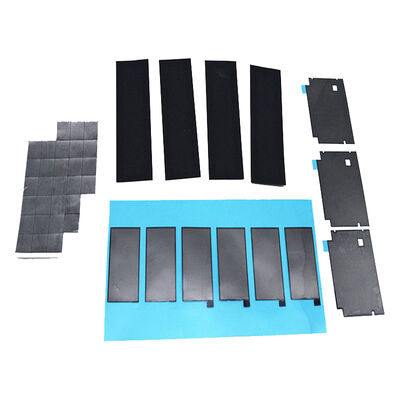

Ultra-Thin And Lightweight Thermal Graphite Sheet For Communication And Electrical Equipment
Company profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Products description
TIR®200 Series is a high-performance thermal management material_based on high-qualitygraphene. Through innovative microstructural design, it achieves ultra-high in-plane thermal conductivity while maintaining exceptional flexibility. This product rapidly and uniformly_spreads heat from the hotspots of electronic devices across the entire surface, effectively reducing hotspot temperatures and ensuring stable equipment operation. Its excellent flexibility allows it to easily conform to complex application scenarios such as curved surfaces and foldable designs, providing an eficient and reliable thermal dissipation solution for next-generation electronic products.
Feature
>Ultra-high thermal conductivity, far exceeding traditional metals
>Excellent flexibility and bending resistance
>Easy to process and compatible with various components
>Broad operating temperature range
>Ultra-thin and lightweight
Application
>Electric Vehicle (EV) Power Battery Packs
>High-performance Servers
>Communication and Electrical Equipment
>Transportation Equipment
>Electronic Products
| Typical Properties of TIR®200 series | ||||
| Product Name | TIR®217 | TIR®225 | TIR®250 | Test Method |
| Color | Black | Visual | ||
| Structure & Components | Graphene | - | ||
| Thickness(mm) | 0.017 | 0.025 | 0.040 | ASTM D374 |
| Density(g/cm³) | 1.9 | 1.8 | 1.7 | ASTM D792 |
| Tensile Strength(Mpa) | 30 | 22 | 22 | ASTM D412 |
| Thermal Conductivity(W/m.K) | 1600 | 1350 | 900 | ASTM D5470 |
| Thermal Diffusivity(cm²/s) | 9.0 | 8.0 | 7.0 | ASTM E1461 |
| Specific Heat Capacity (J/g·°C) @50°C | 0.75 | ASTM E1269 | ||
| Recommended Operating Temperature (°C) | -40℃ ～400℃ | - | ||
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
