| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL and RoHs |
| モデル番号: | TIF100-60-11U サーマルパッド |
| 書類: | TIF100-60-11U_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |
| 製品名: | 電子デバイスの熱伝達と熱抵抗の低減のために設計されたサーマルギャップフィラー 6.0W/mK シリコーンサーマルパッド | モデル番号: | TIF100-60-11U |
|---|---|---|---|
| キーワード: | シリコンサーマルパッド | ダイレクトレクトル定数@1MHz: | 7.0 |
| 耐電圧(V/mm): | ≥5500 | 色: | ダークグレー |
| 熱伝導率: | 6.0W/mK | 応用: | 電子機器の熱伝達と熱抵抗の低減に |
| サンプル: | 無料 |

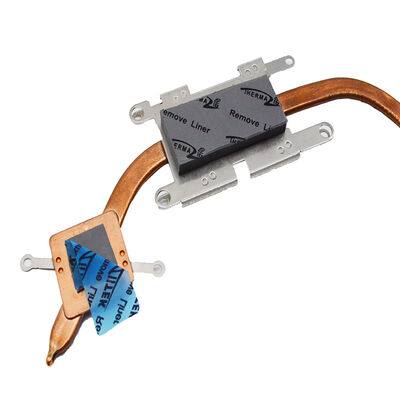

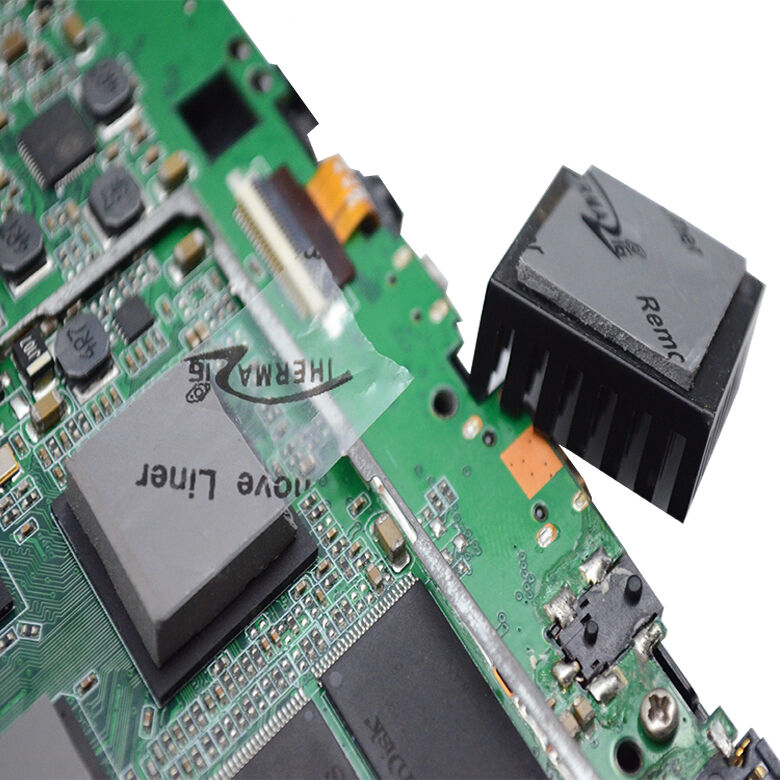

Thermal Gap Filler 6.0W/mK Silicone Thermal Pad Designed For Heat Transfer And Reduced Thermal Resistance In Electronic Devices
Company Profile
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
Products ddescription
Features:
| Typical Properties of TIF®100-60-11U Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.0 W/m-K | ASTM D5470 | |
| 6.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
