| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL |
| モデル番号: | TIF100L 3040-06 |
| 書類: | TIF100L 3040-06_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |

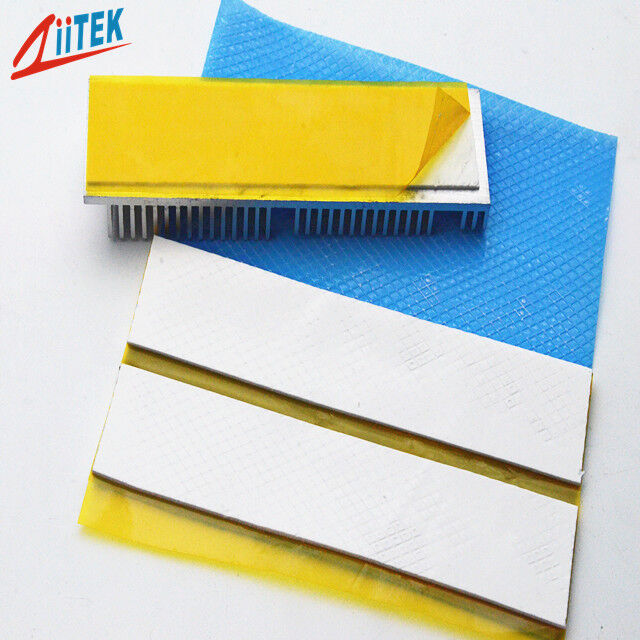

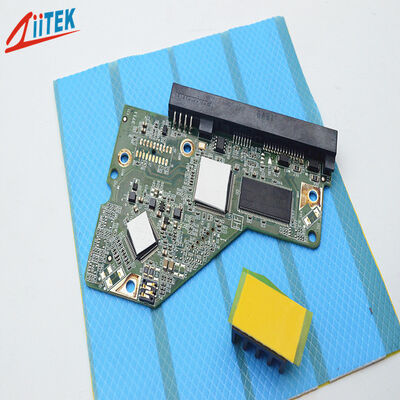

| 製品名: | 電子機器の熱管理に優れた弾性と低揮発性を特徴とするサーマルギャップフィラーパッド | 厚さ: | 0.010 "（0.25mm）〜0.200"（5.0mm） |
|---|---|---|---|
| 工事: | セラミック充填シリコーンエラストマー | 硬度: | 65/40 ショア 00 |
| 色: | 白 | 熱伝導性: | 3.0 W/mK |
| 密度: | 3.0 g/cm3 | キーワード: | 熱ギャップフィルターのパッド |
| 応用: | 電子機器の熱管理 |
Ziitek is a high-tech enterprise dedicated to the research, development, manufacturing, and sales of thermal interface materials (TIMs). With extensive experience in this field, we provide the latest, most effective thermal management solutions. Our facility features advanced production equipment, comprehensive testing capabilities, and fully automatic coating production lines for manufacturing high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products comply with UL94 V-0, SGS, and ROHS standards.
The TIF®100L 3040-06 Series is an ultra-low silicon oxygen volatilization thermal pad specifically designed for thermal management in optical and high-precision electronic devices. This material balances efficient thermal conductivity with extremely low precipitation of condensable volatile substances, effectively preventing contamination of sensitive optical components and precision circuits. The material features excellent flexibility and elasticity, enabling complete filling of micro gaps between heating interfaces and heat dissipation structures, significantly reducing contact thermal resistance, improving thermal conductivity efficiency, and ensuring reliability and extended service life of electronic components during long-term operation.
| Property | Value | Test Method |
|---|---|---|
| Color | White | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 3.0 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 40 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Volume Resistivity (Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Flame rating | V-0 | UL 94 (E331100) |
| Thermal conductivity (W/m-K) | 3.0 | ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Q: How do I place an order?
A:
A: We are a manufacturer in China.
A: Generally 3-7 work days if goods are in stock, or 7-10 work days if goods are not in stock, depending on quantity.
A: Yes, we offer samples free of charge.
