Place of Origin: | China |
ブランド名: | Ziitek |
証明: | UL & RoHS |
Model Number: | TIF100-10-01U Series |
Minimum Order Quantity: | 1000pcs |
---|---|
価格: | 0.1-10 USD/PCS |
Packaging Details: | 24*13*12cm cartons |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T |
Supply Ability: | 1000000 pcs/month |
Products name: | Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Naturally Tacky Needing No Further Adhesive Coating | Keywords: | Thermal Silicone Insulation Pad |
---|---|---|---|
Thinkness range: | 0.020"(0.5mm)~0.200" (5.0mm) | Sample: | Sample Avaliable |
Flam rating: | 94 V0 | Hardness: | 24 Shore 00 |
Thermal Conductivity: | 1.0W/mK | Color: | Dark Gray |
証明: | RoHS and UL recognized |

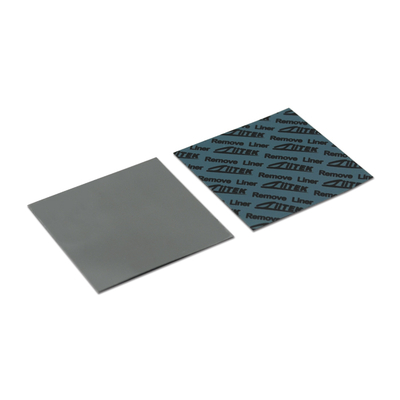

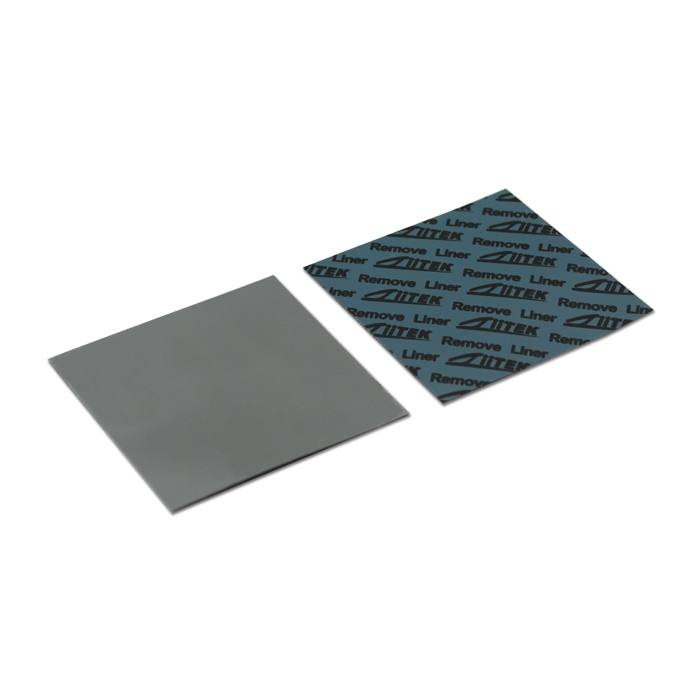

Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Naturally Tacky Needing No Further Adhesive Coating
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber, Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product description
TIF100-10-01U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive : 1.0W/mK
> Soft and Compressible for low stress applications

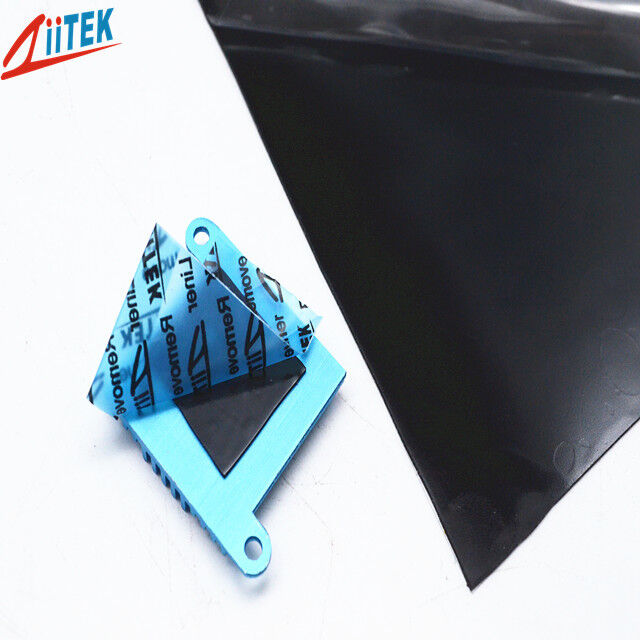

> Naturally tacky needing no further adhesive coating
> Available in varies thickness
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications

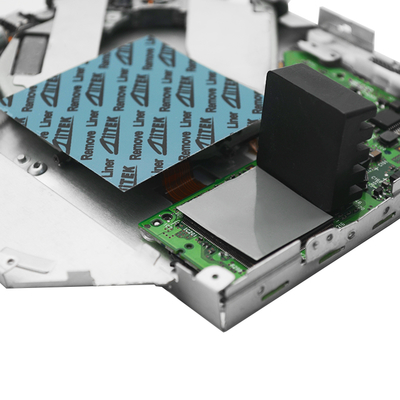

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Display card
> Telecommunication hardware
> Display card

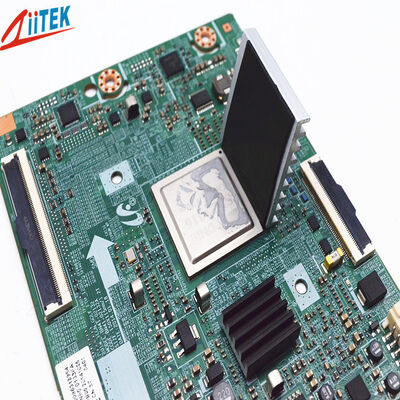

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
Typical Properties of TIF100-10-01U Series | ||
Color | Dark Gray | Visual |
Construction & Compostion | Ceramic filled silicone elastomer | ******* |
Specific Gravity | 2.1g/cc | ASTM D297 |
Thickness range | 0.020"(0.5mm)~0.200" (5.0mm) | ASTM C351 |
Hardness (thickness ≥1.0mm) | 27 Shore 00 | ASTM 2240 |
Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
Operating Temp | -40 ~160℃ | ******* |
Dielectric Constant | 4.5 MHz | ASTM D150 |
Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
Fire rating | 94-V0 | equivalent UL |
Thermal conductivity | 1.0W/mK | ASTM D5470 |
Outgassing(TML) | 0.35% | ASTM E595 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
