| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF100-01F |
| 最小注文数量: | 1000pcs |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12cmカートン |
| 受渡し時間: | 3-5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | サーマルパッド1.5W/mk 0.25mm-5.0mm厚さ自動車エンジン制御ユニット用のサーマルシリコン導電性パッド | 熱伝導率: | 1.5W/m-K |
|---|---|---|---|
| 厚さ範囲: | 0.010 "（0.25mm）〜0.200"（5.0mm） | 色: | 黒 |
| 誘電率: | 4.0mHz | 誘電性破壊電圧: | > 5500 VAC |
| 火災評価: | 94 V0 | キーワード: | 熱シリコン導電性パッド |
| 適用する: | 自動車のエンジンの制御装置 |

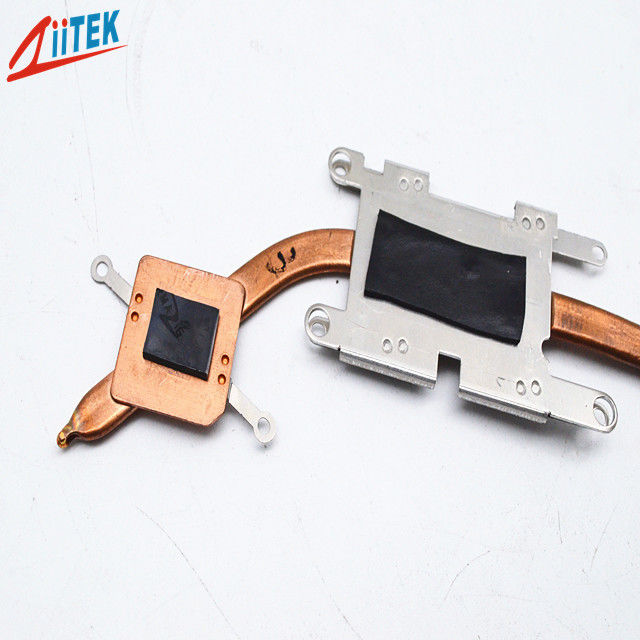

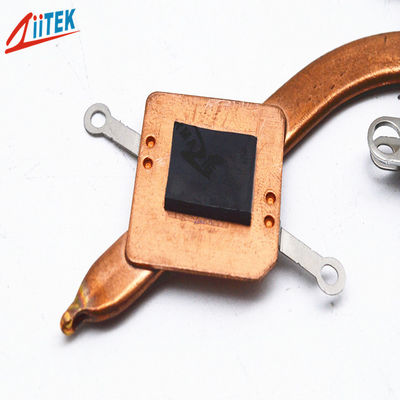

Thermal Pad 1.5w/mk 0.25mm-5.0mm Thickness Thermal Silicone Conductive Pads for Automotive engine control units
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
The TIF®100-01F Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 1.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> LED TV / LED Lit Lamps
> Automotive engine control units
> SAD-DC Power Adapters
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Micro heat pipe thermal solutions
> Memory Modules
> Routers
> Telecommunication hardware
> Mainboard/mother board
> CPU
> Display card
> Mainboard/mother board
> Notebook
| Typical Properties of TIF®100-01F Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.010"(0.25mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.3 g/cc | ASTM D792 |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Operating Temp | -45 ~ 120℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.0 MHz | ASTM D150 |
| Volume Resistivity | ≥2.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 1.5W/m-K | ASTM D5470 |
Product Thicknesses: 0.010"(0.25mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
