| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL |
| モデル番号: | TIF050-11-1 |
| 最小注文数量: | 1000チューブ |
|---|---|
| 価格: | 0.1-100USD/KG |
| パッケージの詳細: | 300cc/PCS,6PCS/箱 |
| 受渡し時間: | 3-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 10000KG/Month |
| 製品名: | 高伝導性熱伝導性ゲル 5.0W/MK 絶縁性熱伝導性ゲル PCB アプリケーションに適しています | 比重: | 3.25g/cc |
|---|---|---|---|
| 色: | 濃い灰色 | マテール: | セラミックで満たされたシリコン材料 |
| 耐電圧 (V/mm): | ≥6000 | 熱伝導率: | 5.0W/m-k |
| キーワード: | 熱ジェル | アプリケーション: | PCB アプリケーション |
| 変電気変数 @1MHz: | 7.7 |

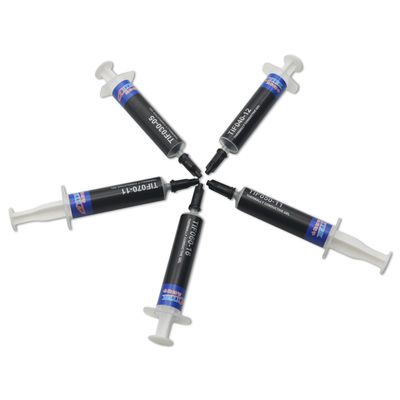

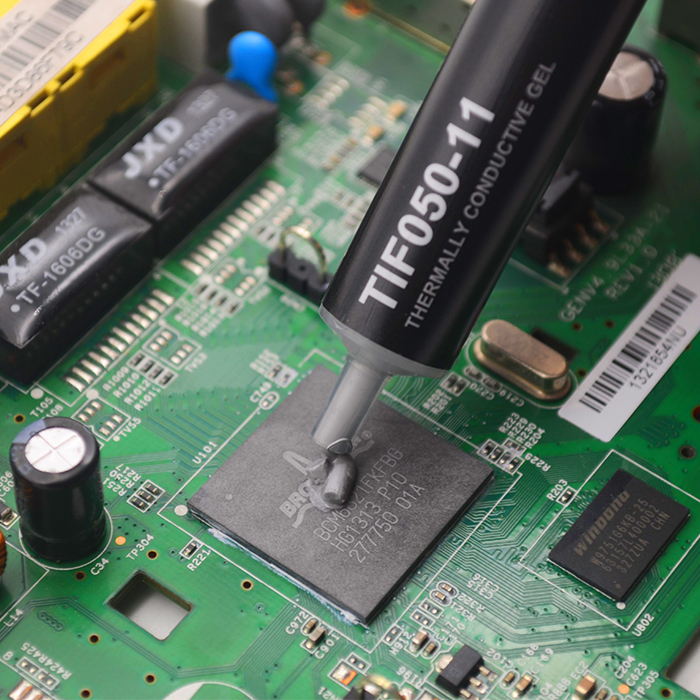

High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications
TIF®050-11-1 is a thermally conductive paste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.
Feature
> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties
Application
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®050-11-1 Typical Properties | ||
| Property | Value | Test method |
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | ****** |
| Density(g/cm³) | 3.25g/c | ASTM D792 |
| Thermal conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥6000 | ASTM D149 |
| Dielectric constant @1MHz | 7.7 | ADTM D150 |
| Flame Rating | V-0 | UL 94 |
| Volume resistivity(Ohm.cm) | 8.0 X 1013 | ASTM D257 |
Packing details
30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
