| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF100-32-05U |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*23*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | AI サーバー、GPU 冷却、インバーター用のウルトラソフトサーマルシリコンパッド 3.2W 高導電率ギャップフィラー | 厚さの範囲: | 0.25～5.0mmT |
|---|---|---|---|
| アプリケーション: | AIサーバー、GPU冷却、インバーター | 色: | 青 |
| 耐電圧（V/mm)）: | ≥5500 | 工事: | セラミック充填シリコンエラストマー |
| 火災評価: | UL94 V-0 | 熱伝導率: | 3.2W/m-K |
| 変電気変数 @1MHz: | 3.5 | キーワード: | サーマルシリコンパッド |

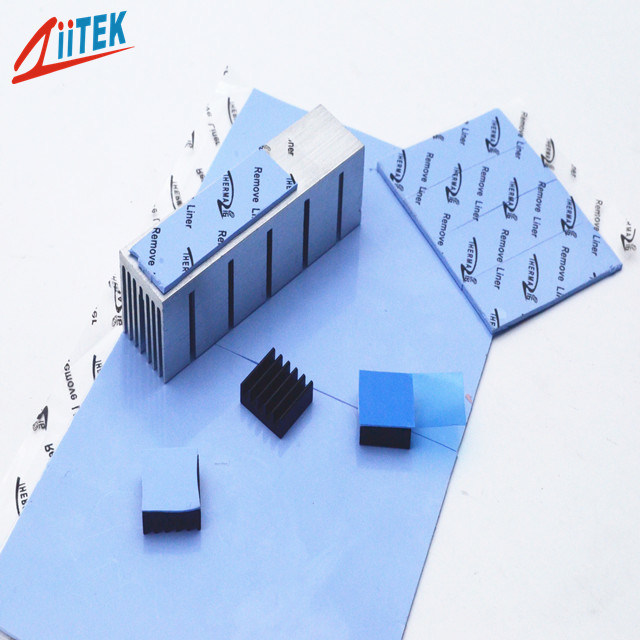

Ultra Soft Thermal Silicone Pad 3.2W High Conductivity Gap Filler For AI Servers, GPU Cooling, Inverter
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
The TIF®100-32-05U Series is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress.It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assemblies.
Features:
> Good thermal conductivity: 3.2W/mK
> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Easy release construction
> Electrically isolating
> High durability
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
| Typical Properties of TIF®100-32-05U Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.5) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness (Shore OO) | 65 | 27 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 3.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.2 W/m-K | ASTM D5470 | |
| 3.2 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.200" (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
