| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF100-50-56E |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*23*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | UL-94 V0 難燃性導電性パッド GPU 冷却用 AI プロセッサ用高品質熱伝導性パッド | 厚さの範囲: | 0.25～5.0mmT |
|---|---|---|---|
| キーワード: | 熱伝導性のパッド | 色: | 緑 |
| 耐電圧（V/mm)）: | ≥5500 | 工事: | セラミック充填シリコンエラストマー |
| 火災評価: | UL94 V-0 | 熱伝導率: | 5.0W/m-k |
| アプリケーション: | GPU 冷却と AI プロセッサー | 変電気変数 @1MHz: | 8.5 |

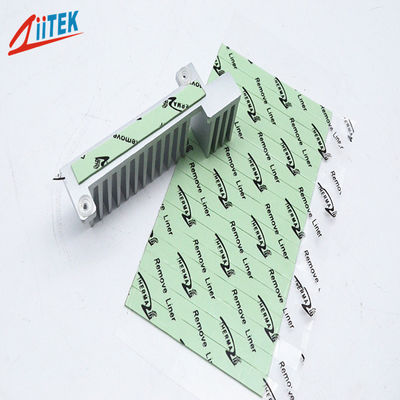

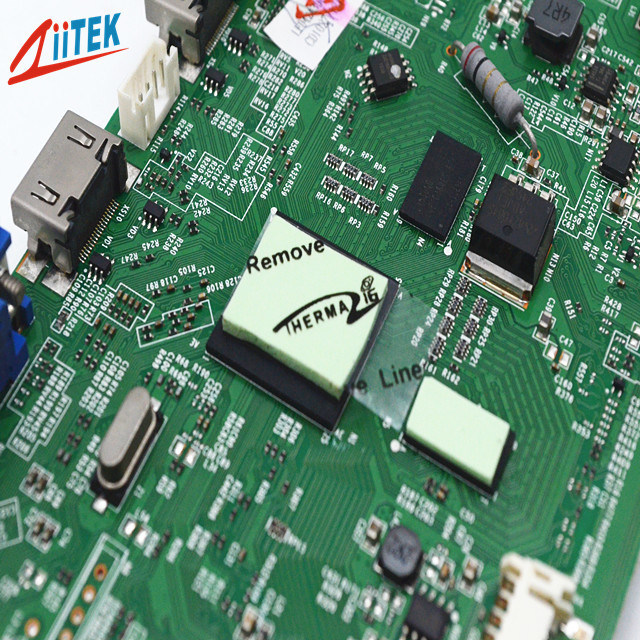

UL-94 V0 Flame Rating Conductive Pad For GPU Cooling High Quality Thermal Conductive Pad For AI Processors
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber, Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
The TIF®100-50-56E Series is a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness . This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between costand performance.
Features:
> Good thermal conductivity: 5.0W/mK
> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> RoHS compliant
> UL recognized
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
| Typical Properties of TIF®100-50-56E Series | |||
| Property | Value | Test method | |
| Color | Green | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.5) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness (Shore OO) | 65 | 35 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 8.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1014 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
| 5.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.200" (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
