| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | RoHS |
| モデル番号: | TIG680-40AB |
| 最小注文数量: | 10kg |
|---|---|
| 価格: | 1-100USD/KG |
| パッケージの詳細: | 1kg/can |
| 受渡し時間: | 3-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 10000KG/Month |
| 製品名: | 4.0W/MK 電子産業の放熱のための高熱伝導性 2 成分ポッティング シリコーン接着剤 | 材料: | シリコン接着剤 |
|---|---|---|---|
| 色: | グレー | 硬度: | 25 （海岸A） |
| 応用: | 電子産業の放熱 | 熱伝導率: | 4.0W/mK |
| キーワード: | 熱伝導性ポッティングコンパウンド |
4.0W/MK High Thermal Conductive Two Component Potting Silicone Adhesive For Electronic Industry Heat Dissipation

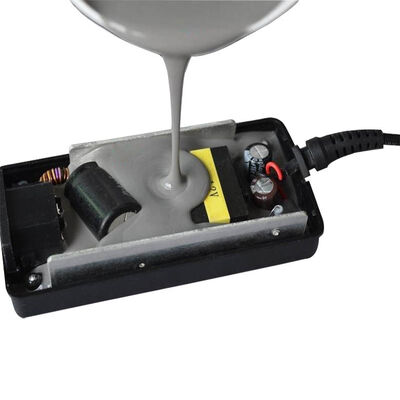

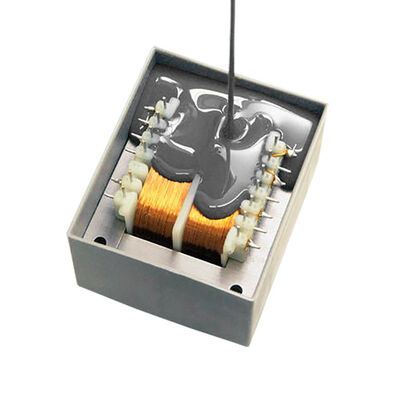

TIG®680-40AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate,thereby improving the performance and service life of electronic components.
Feature
> Good thermal conductivity: 2.0W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> Longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process
| Typical Properties of TIG®680-40AB Series | |||
| Material Properties (Before Curing) | |||
| Property | Numerical | Test Method | |
| Color/Part A | White | Visual | |
| Color/Part B | Gray | Visual | |
| Part A Viscosity (mPa.s) | 16000 | GB/T 10247 | |
| Part B Viscosity (mPa.s) | 23000 | GB/T 10247 | |
| Mix Ratio | 1:1 | Ziitek Test Method | |
| Shelf life | 6 months(Unopened) | Ziitek Test Method | |
| Cure Schedule | |||
| Pot Life @25℃ | 30~45 mins | Ziitek Test Method | |
| Cure @70℃ | 20~30 mins | Ziitek Test Method | |
| Cure Material Properties | |||
| Color | Gray | Visual | |
| Hardness (Shore A) | 25 | ASTM D2240 | |
| Density (g/cm³) | 3.15 | ASTM D792 | |
| Recommended Operating temperature (℃) | -45 ~200 | ***** | |
| Flame Rating | V-0 | UL 94 | |
| Thermal Conductivity (W/mK) | 4.0 | ASTM D5470 | |
| Breakdown Voltage (V/mm) | ≥10000 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0~8.0 | ASTM D150 | |
| Volume Resistivity (Ohm·cm) | 3.0x1013 | ASTM D257 | |
