| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF200-04ES |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | 非常に柔らかい熱伝導シリコンサーマルパッド 1.0W/MK 耐熱サーマルギャップパッド | 比重: | 1.75g/cm3 |
|---|---|---|---|
| 色: | ブルー／ピンク | 熱伝導率: | 1.0w/mk |
| 厚さ: | 0.50～5.0mmT | 絶縁破壊電圧: | >5500 VAC |
| キーワード: | 熱間隔パッド | 工事: | セラミック充填シリコーンエラストマー |
| 応用: | AIサーバー、産業、照明機器、医療、軍事 |

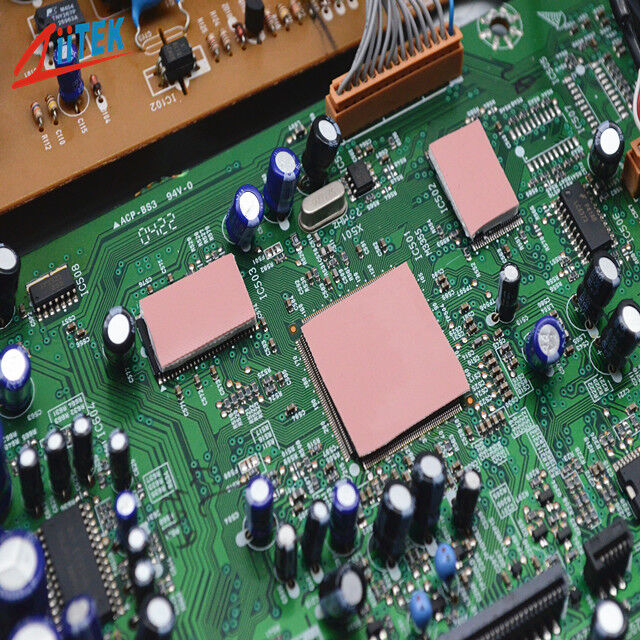

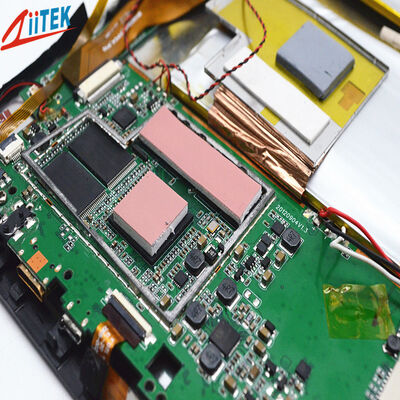

Extremely Soft Thermally Conductive Silicon Thermal Pad 1.0 W/MK Heat Resistant Thermal Gap Pad
Products description
The TIF®200-04ES Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and extremely soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features
> Good thermal conductivity
> Extremely soft, low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant,and scratch-resistant performance
Application:
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of The TIF®200-04ES Series | |||
| Property | Value | Test method | |
| Color | Blue /Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.020 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.0~5.0) | ||
| Hardness | 7 Shore 00 | 7 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥8000 | ASTM D149 | |
| Dielectric Constant | 4.9MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1013 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.0 W/m-K | ASTM D5470 | |
| 1.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Company profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, military, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
