| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | RoHS |
| モデル番号: | TIC800H |
| 書類: | TIC800H_Data Sheet .pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～6営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | ペイロード プロセッサのための良好なプロセス互換性 7.5W/mK 熱伝導性相変化材料 | キーワード: | 相変化材料 |
|---|---|---|---|
| Applicatoin: | ペイロードプロセッサ | 密度: | 2.7 G/cm3 |
| 熱伝導率: | 7.5W/MK | 相変化軟化温度(℃): | 50℃～60℃ |
| 推奨動作温度(℃): | -40~125℃ | 色: | グレー |

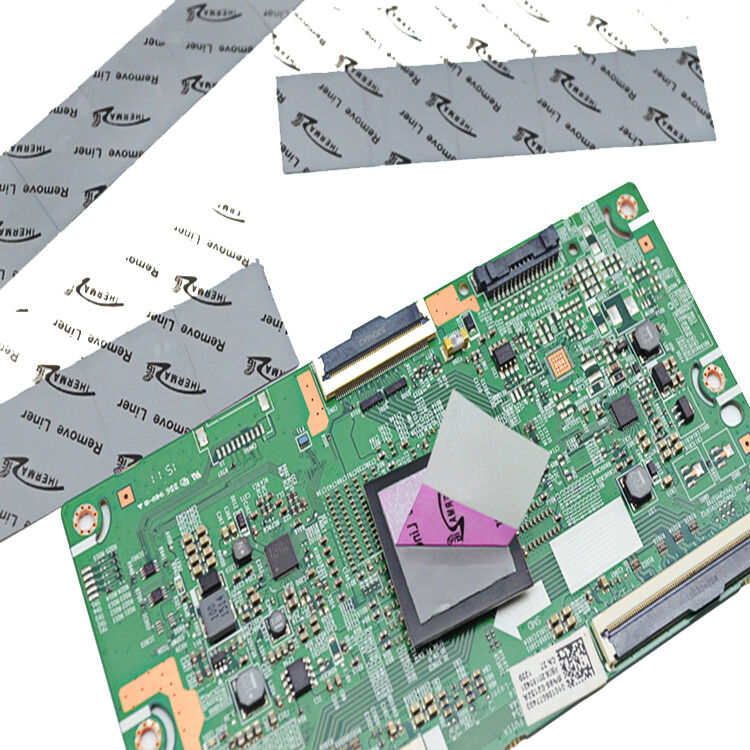

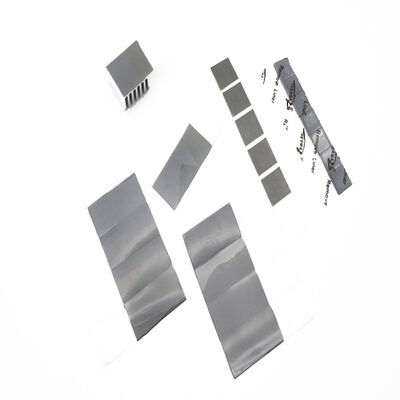

Good Process Compatibility 7.5W/mK Thermal Conductive Phase Change Material For Payload Processor
Company profile
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
Products decsription
The TIC®800H Series is an ultra-high thermal conductivity phase change material with a unique grain orientation structure. This structure achieves directional optimization of the heat flow path through micro ordered arrangement, significantly doubling the macroscopic thermal conductivity efficiency. When the temperature exceeds the phase transition point of 50℃, the material can soften and infiltrate the interface, filling micro irregular gaps, and ultimately forming a heat conduction channel with extremely low thermal resistance at the contact surface, improving the eficiency of the heat dissipation system.
Features
> Excellent thermal conductivity
> Good process compatibility
> Soft surface and self adhesive
> Low steady-state thermal resistance
Applications
> Power conversion equipment
> Payload processor
> Server CPU
> Game graphics card GPU chip heat dissipation
| Typical Properties of TIC®800H Series | ||||
| Product Name | TIC®808H | TIC®810H | TIC®812H | Testing standards |
| Color | Gray | Visual | ||
|
Thickness(inch/mm) |
0.008" | 0.010" | 0.012" | ASTM D374 |
| (0.20mm) | (0.25mm) | (0.30mm) | ||
| Density(g/cm³) | 2.7 | ASTM D792 | ||
| Recommended Operating Temperature (℃) |
-40～125 | - | ||
| Phase Change Softening Temperature(℃) | 50~60 | - | ||
| Thermal conductivity | 7.5 W/mK | ASTM D5470 | ||
|
Thermal lmpedance (℃-in²/W)@10 psi |
0.018 | 0.019 | 0.021 | ASTM D5470 |
|
Thermal lmpedance (℃-in²/W)@50 psi |
0.013 | 0.014 | 0.015 | ASTM D5470 |
Product Specifications
Standard Thickness:0.008" (0.20 mm),0.010" (0.25 mm),0.012" (0.30 mm)
Standard Size: 10" x 16" (254 mm x 406 mm)
TIC®series can be molded into different shapes to provide. If you need different thicknesses or would like to learn more about thermal conductive materials, please contact our company.
