| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF100-50-50S |
| 書類: | TIF100-50-50S_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | 5.0W/mK 熱伝達と断熱を必要とする AI プロセッサーや電子機器に適したサーマルギャップフィラー | キーワード: | サーマルギャップフィラー |
|---|---|---|---|
| サンプル: | サンプル無料 | 耐火等級: | 94 V0 |
| 色: | ピンク | 熱伝導率: | 5.0W/m-k |
| ダイレクトレクトル定数@1MHz: | 7.5 | 耐電圧（V/mm)）: | ≥5500 |
| 厚み範囲: | 0.010インチ～0.200インチ(0.25mm～5.0mm) | 応用: | 熱伝達と断熱が必要なAIプロセッサーや電子機器に |

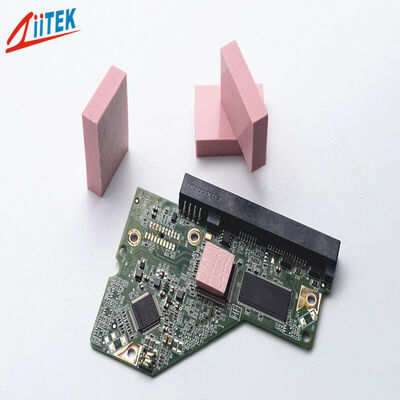

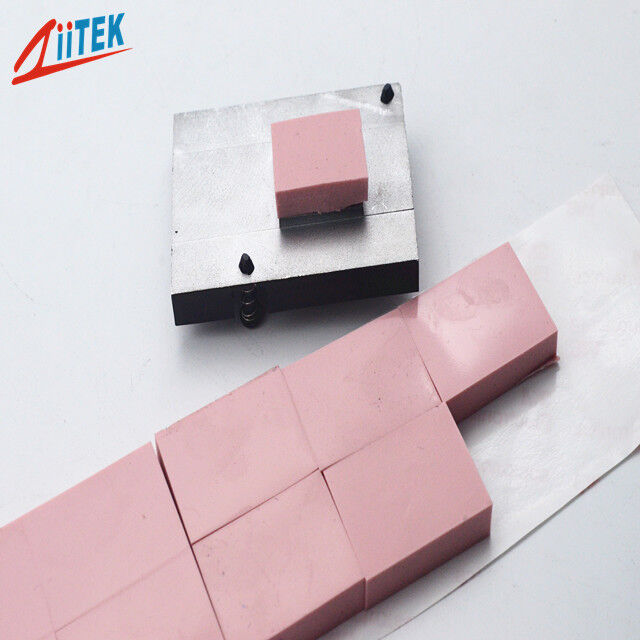

5.0W/mK Thermal Gap Filler Suitable For AI Processors And Electronic Devices Requiring Heat Transfer And Insulation
TIF®100-50-50S Series is a well-balanced, general-purpose thermal pad. It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Key Features
Applications
Technical Specifications of TIF®100-50-50S Series
Property
Value
Test Method
Color
Pink
Visual
Construction & Composition
Ceramic filled silicone elastomer
-
Density (g/cm³)
3.3
ASTM D792
Thickness Range (inch/mm)
0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00ASTM D374
Hardness (Shore 00)
65 | 45
ASTM 2240
Continuous Use Temp
-40 to 200℃
-
Breakdown Voltage (V/mm)
≥ 5500
ASTM D149
Dielectric Constant@1MHz
7.5
ASTM D150
Volume Resistivity(Ohm-meter)
＞1.0×10¹²
ASTM D257
Thermal Conductivity (W/m-K)
5.0
ASTM D5470 / ISO22007
Fire Rating
V-0
UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging & Lead Time
Packaging Details:
• PET film or foam for protection
• Paper card to separate each layer
• Export carton inside and outside
• Customized to meet customer requirementsLead Time: Quantity: 5000 pieces - To be negotiated
Frequently Asked Questions
A: We are manufacturer in China.
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
A: Most thermal gap pad surfaces have double side natural inherent tack. Non-stick surface can also be treated according to customer's requirements.
A: Click the "Send messages" button, fill out the form with your questions and purchase requests, and we will reply as soon as possible via email or online.About Ziitek
Ziitek is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective thermal management solutions. Our facilities include advanced production equipment, full test equipment, and fully automatic coating production lines supporting production of high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products are UL94 V-0, SGS and ROHS compliant.
