| Place of Origin: | China |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| Model Number: | TIS806K-13-08 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| 価格: | 0.1-10 USD/pcs |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-6 work days |
| Supply Ability: | 1000000 pcs/month |
| Product name: | Electrically Isolating Thermal Conductive Insulating Materials For Power Semiconductors | Thickness range(inch/mm): | 0.006/0.152 |
|---|---|---|---|
| Color: | Beige | Feature: | Low thermal resistant with high voltage isolation |
| keyword: | Thermal Conductive Insulating | Thermal conductive: | 1.3W/mK |
| continous use temp: | -60 to 180℃ | compliance: | UL & RoHS |
| Materials: | Ceramic filled silicone elastomer / Polyimide film | Application: | Power Semiconductors |

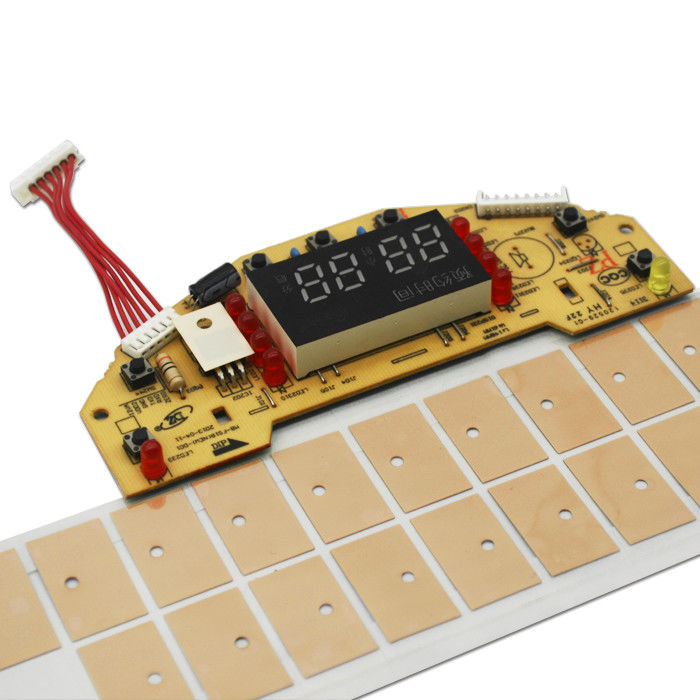

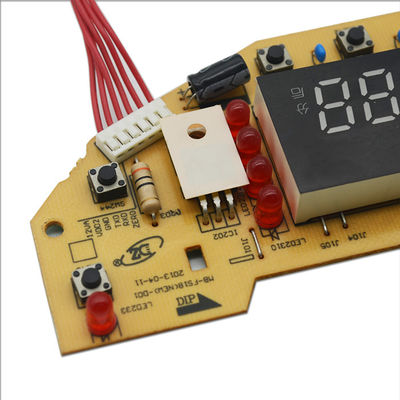

Electrically Isolating Thermal Conductive Insulating Materials For Power Semiconductors
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
The TIS®806K-13-08 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIS®806K-13-08 Series | ||
| Property | Value | Test Method |
| Color | Beige | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer /Polyimide film | ****** |
| Thickness range |
0.006inch (0.152mm) |
ASTM D374 |
| Tensile Strength(MPa) | 34 | ASTM D412 |
| Density | 2.4 g/cc | ASTM D297 |
| Continuos Use Temp | -60 to 180℃ | ****** |
| Breakdown Voltage(V/mm) | 6000 | ASTM D149 |
| Dielectric Constant @ 1MHz |
3.7 |
ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Fire rating | 94V0 | UL94(E331100) |
| Thermal conductivity | 1.3W/m-K | ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi | 0.46 | ASTM D5470 |
Standard Thicknesses
0.006inch (0.152mm)
Standard Sizes
12" x 160"(304mm * 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
