| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL and RoHs |
| モデル番号: | TIF100-65-11US |
| 書類: | TIF100-65-11US_Data Sheet .... ..pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |

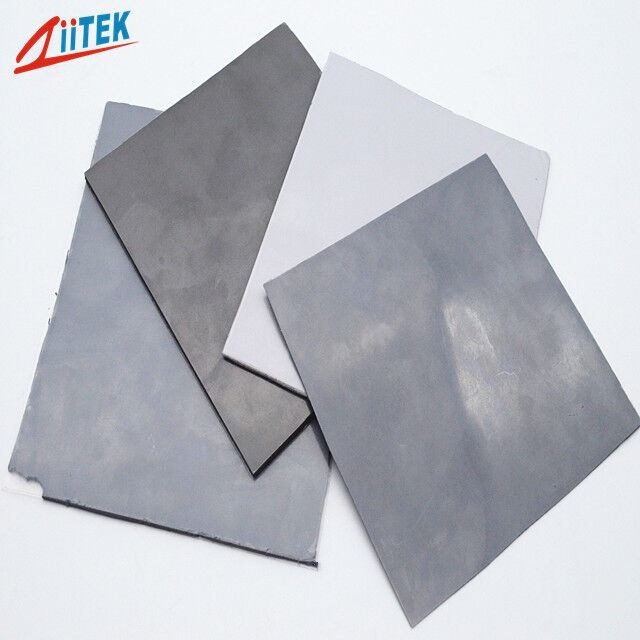

| 製品名: | 電子機器や産業機器の放熱に最適な、信頼性と安定性の高い熱伝導ギャップフィラーパッド | 熱伝導性: | 6.5W/mK |
|---|---|---|---|
| 工事: | セラミック充填シリコーンエラストマー | 硬度: | 65/20 ショア00 |
| サンプル: | 無料サンプル | 色: | ダークグレー |
| 厚さ: | 0.010 "（0.25mm）〜0.200"（5.0mm） | 密度: | 3.45g/cm3 |
| キーワード: | シリコンサーマルパッド | 応用: | 電子・産業機器の放熱用 |
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
Products description
The TIF®100-65-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
| Typical Properties of TIF®100-65-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 7.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity(W/m-K) | 6.5 | ASTM D5470 | |
| 6.5 | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16” (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
