| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL and RoHs |
| モデル番号: | TIS100-08-01F |
| 書類: | TIS100-08-01F_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |

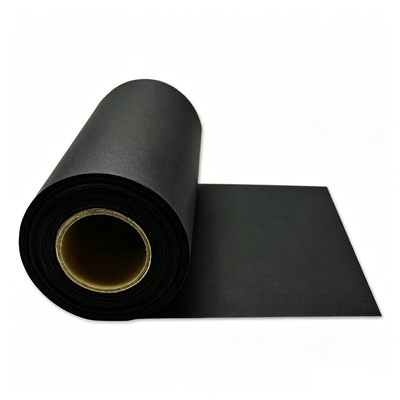

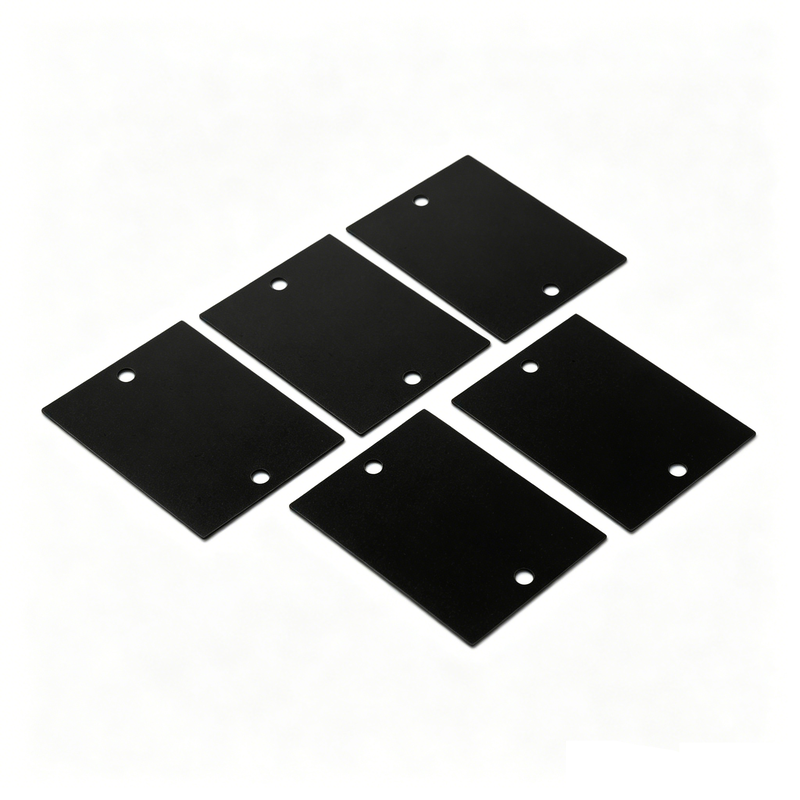

| 製品名: | 電子機器の放熱のために0.8W/mKの熱伝導率を提供するように設計された0.8W/mKの熱伝導性絶縁ガスケット | 熱伝導性: | 0.8W/mk |
|---|---|---|---|
| 硬度: | 60ショア00 | サンプル: | 無料サンプル |
| 色: | 黒 | 厚さ (インチ/mm): | 0.012/0.30 |
| 密度: | 1.8g/cm3 | キーワード: | 熱伝導性絶縁ガスケット |
| 工事: | セラミック充填シリコーンエラストマー | 応用: | 電子機器の放熱 |
Products description
The TIS®100-08-01F Series is a high-efficiency thermal conductive insulating product. lt incorporates insulating silicone substrates into thermally conductive materials to achieve both insulation and heat conduction. At the same time, the glass fibers provide excellent tear and puncture resistance. The product is non-toxic and environmentally friendly, has flame-retardant properties, and is mainly used for isolating power supplies and heat sinks.
| Typical Properties of TIS®100-08-01F Series | |||
| Product Model | TIS112-08-01F | TIS120-08-01F | Test method |
| Color | Black | Visual | |
| Construction | Ceramic filled silicone elastomer/ Fiberglass | ****** | |
| Density(g/cm³) | 1.8 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.012 | 0.020 | ASTM D374 |
| 0.30 | 0.50 | ||
| Hardness (Shore 00) | 60 | ASTM 2240 | |
| Tensile Strength (Mpa) | 21 | ASTM D412 | |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5000 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 0.8 W/m-K | ASTM D5470 | |
| 0.8 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.012" (0.30 mm),0.020" (0.50 mm)
Standard Size: 12"X160" (304 mmX48.7M)
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
Factory Size:8000~10,000 square meters
Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
