| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL |
| モデル番号: | TIF100-20-02U |
| 書類: | TIF100-20-02U_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |

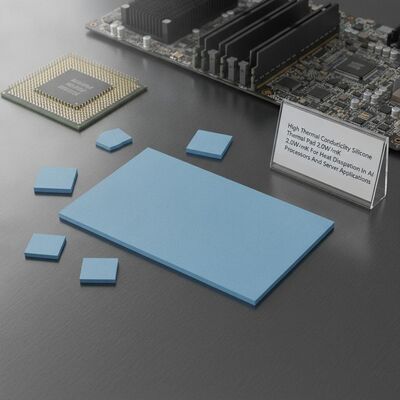

| 製品名: | AI プロセッサーおよびサーバー アプリケーションの熱放散用の高熱伝導率シリコーン サーマル パッド 2.0W/mK | 硬度: | 65/27 ショア00 |
|---|---|---|---|
| キーワード: | シリコンサーマルパッド | 色: | 灰色白 |
| 熱伝導率: | 2.0W/mk | 応用: | AIプロセッサおよびサーバーアプリケーションの熱放散用 |
| 工事: | セラミック充填シリコーンエラストマー | 厚さ: | 0.010~0.200インチ(0.25~5.0mm) |
| サンプル: | 無料 |

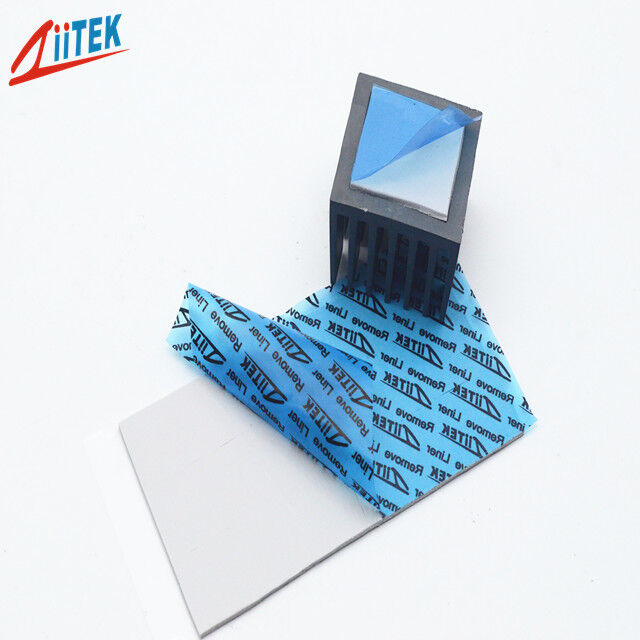

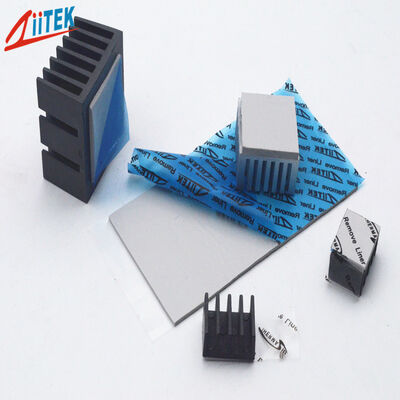

TIF®100-20-02U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray white | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.7 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 (0.25~0.50) 0.030~0.200 (0.75~5.00) |
ASTM D374 |
| Hardness (Shore 00) | 65 | 27 | ASTM 2240 |
| Continuous Use Temp | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Thermal Conductivity (W/m-K) | 2.0 | ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
