| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL |
| モデル番号: | TIF100-65-11U |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 25*13*12cm カートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |
| 製品名: | 10.0W/MK の優れた熱伝導率 AI プロセッサー AI サーバー用シリコーンベースのサーマルギャップパッドフィラー | 熱伝導率: | 6.5W/mK |
|---|---|---|---|
| 応用: | AIプロセッサ AIサーバー | 耐電圧 (V/mm): | ≥5500 |
| 色: | 青 | 工事: | セラミック充填シリコーンエラストマー |
| 密度(g/cm3): | 3.4 | キーワード: | 熱間隔パッド |
| 硬度: | 65/27 ショア00 |

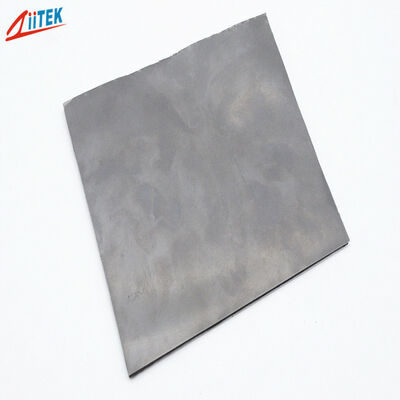

Exceptional Thermal Conductivity Rating Of 10.0W/M-K Silicone-Based Thermal Gap Pad Filler For AI Processors AI Servers
Company Profile
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

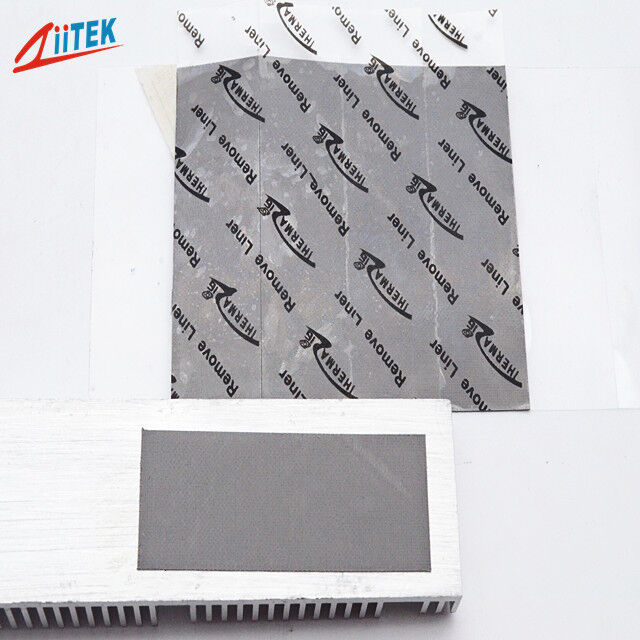

The TIF®100-65-11U Series is designed for high performance applications and provides excellent wet-out at the interface, due to its exceptional conformity to rough or irregular surfaces. The soft gap pad filler material is supplied with a protective liner on both sides for ease of use, and the unique filler package and low modulus design offer high thermal performance at low pressures.
> Thermal conductivity: 6.5W/m-K
> Ultra-low modulus design easily conforms and adheres to irregular surfaces
> Low compression stress
> High compliance, low compression stress
> Supplied with protective liners for ease of use
| Typical Properties of TIF®100-65-11U Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | - | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.5W/m-K | ASTM D5470 | |
| 6.5W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
