| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF200-20-18U |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | 家庭用電化製品の熱伝導性 2.0W/MK サーマル ギャップ パッド | サンプル: | サンプル無料 |
|---|---|---|---|
| 耐火等級: | 94 V0 | 応用: | 家庭用電化製品の冷却 |
| 色: | 黄色/緑 | 熱伝導率: | 2.0W/m-K |
| 誘電率 @ 1MHz: | 5.0MHz | 耐電圧（V/mm）: | ≧8000 |
| 厚さの範囲: | 0.010インチ～0.200インチ(0.25mm～5.0mm) | キーワード: | サーマルギャップパッド |

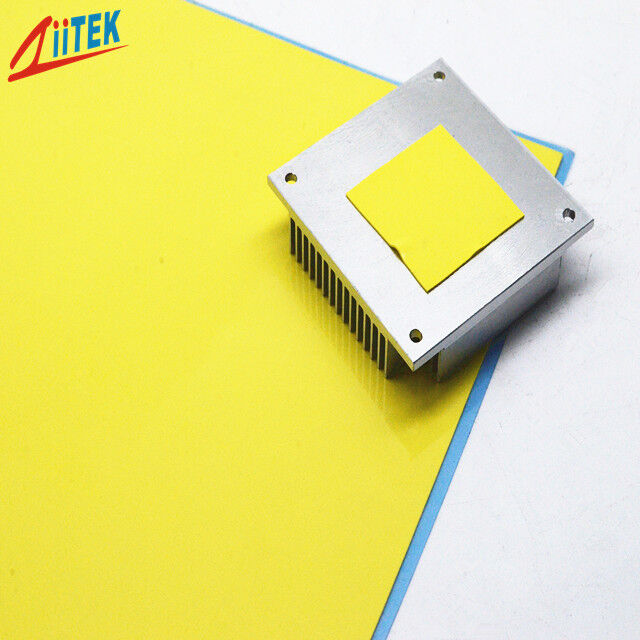

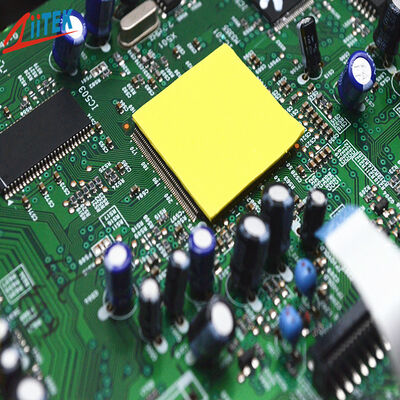

Consumer Electronics Thermally Conductive 2.0W/MK Thermal Gap Pads For Motherboard Chip
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Ziitek TIF®200-20-18U Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and extremely soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength,effectively preventing circuit short circuits.Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features
> Good thermal conductivity
> Extremely soft, low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant, and scratch-resistant performance
Applications
> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
| Typical Properties of TIF®200-20-18U Series | |||
| Property | Value | Test method | |
| Color | Yellow/Green | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.25 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 27 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 8000 | ASTM D149 | |
| Dielectric Constant | 5.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 2.0 | ASTM D5470 | |
| 2.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
