| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF100-10Fシリーズ |
| 書類: | TIF100-10F_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | 電子冷却システム用に1.5W/mKの熱伝導率を提供する優れた柔らかさの熱伝導性パッド | キーワード: | 熱伝導性のパッド |
|---|---|---|---|
| 思考の範囲: | 0.010 "（0.25mm）〜0.200"（5.0mm） | サンプル: | サンプルあり |
| フラム評価: | 94 V0 | 硬度: | 65/60 ショア00 |
| 熱伝導率: | 1.5W/mk | 色: | グレー |
| 証明: | RoHS and UL recognized |

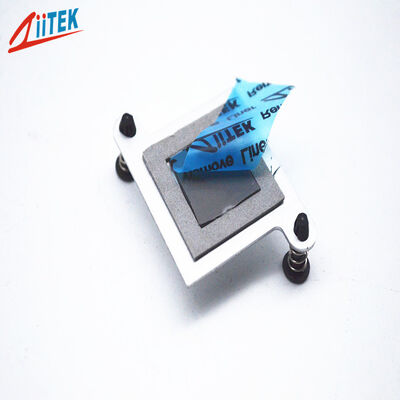

TIF®100-10F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fill interface gaps, transfer heat, and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation, insulation, and mechanical stability.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 2.1 | ASTM D792 |
| Thickness Range | 0.010"~0.020" | 0.030"~0.200" 0.25~0.50mm | 0.75~5.0mm |
ASTM D374 |
| Hardness (Shore 00) | 65 | 60 | ASTM 2240 |
| Operating Temperature | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity | 1.5 W/m-K | ASTM D5470 / ISO22007 |
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010 (0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

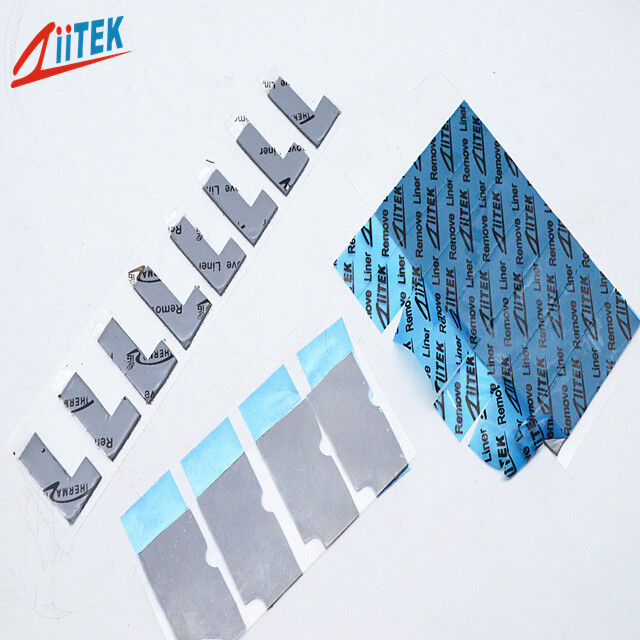

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging: Protected with PET film or foam, paper card separation between layers, export carton packaging, customizable to customer requirements.
Lead Time: For quantities of 5000 pieces, delivery time is negotiable.
We are a manufacturer based in China.
Yes, we welcome custom orders. We can customize dimensions, shapes, colors, and apply adhesive coatings or fiberglass reinforcement as required. Please provide drawings or detailed specifications.
Pricing depends on size, thickness, quantity, and specific requirements such as adhesive applications. Please provide these details for an exact quote.
• 12-hour online service with fast inquiry response
• Business hours: 8:00 AM - 5:30 PM, Monday to Saturday (UTC+8)
• Experienced English-speaking support staff
• Standard export packaging or customized marking
• Free samples available
• Comprehensive after-sales support and problem resolution
