| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL & RoHS |
| モデル番号: | TIF200-30-25S |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10000 PCS/月 |
| 製品名: | 自動車バッテリー用の複数の厚さの柔らかい熱パッドの熱伝導性シリコーン パッド | 誘電率: | 4.5MHz |
|---|---|---|---|
| キーワード: | ソフトサーマルパッド | サンプル: | サンプル無料 |
| 熱伝導率: | 3.0W/m-K | 厚み範囲: | 0.010インチ～0.200インチ(0.25mm～5.0mm) |
| 色: | ピンク/ライトピンク | 耐火等級: | 94 V0 |
| 耐電圧（V/mm)）: | ≥5500 VAC | 応用: | 電気製品 |

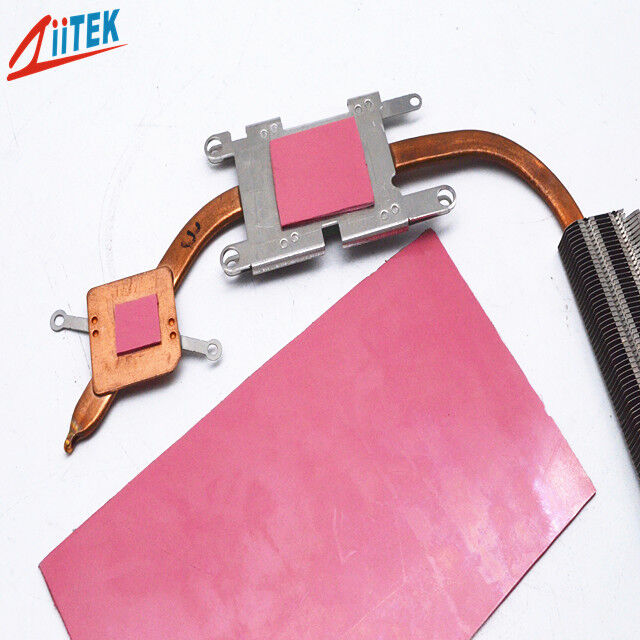

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®200-30-25S Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation,and soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdownvoltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces,providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation, such as power devices, new energy vehicles, and portable electronic devices.
Features
> Good thermal conductive: 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant, and scratch-resistant performance
> RoHS compliant
> UL recognized
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions

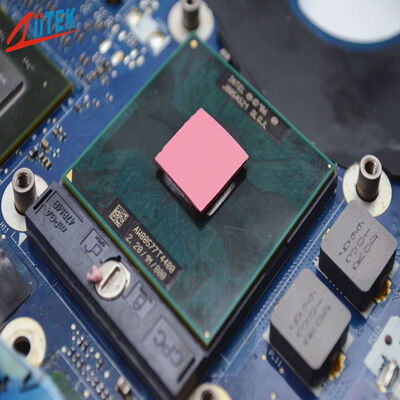

> Motherboard chip
> Radiator
> AI Processors AI Servers
> Power Electronics
> Automotive Electronics
> Consumer Electronics
| Typical Properties of TIF®200-30-25S Series | |||
| Property | Value | Test method | |
| Color | Pink/Light Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | - | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 45 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
