| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL and RoHs |
| モデル番号: | TIF100-20-10E |
| 書類: | TIF100-20-10E_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |

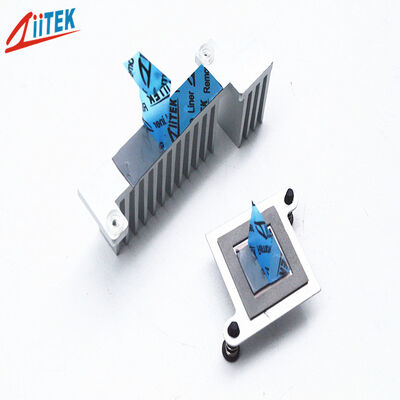

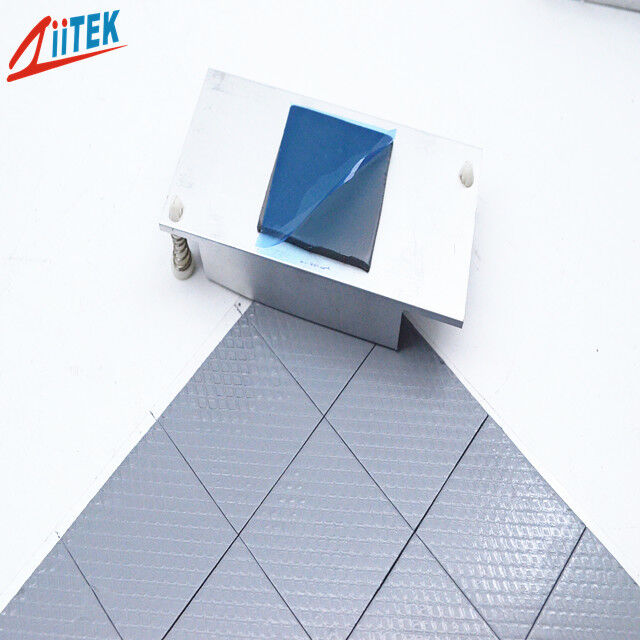

| 製品名: | 電子機器冷却用途向けに 2.0W/mK の熱伝導率を提供するように設計されたサーマル ギャップ フィラー | 熱伝導性: | 2.0 W/mK |
|---|---|---|---|
| 硬度: | 65/35 ショア00 | サンプル: | 無料サンプル |
| 色: | グレー | 厚さ: | 0.010 "（0.25mm）〜0.200"（5.0mm） |
| 密度: | 2.7g/cm3 | キーワード: | サーマルギャップフィラー |
| 工事: | セラミック充填シリコーンエラストマー | 応用: | 電子機器の冷却用途 |
Products description
The TIF®100-15-01F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fillinterfacegaps,transfer heat,and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation,insulation,
and mechanical stability.
| Typical Properties of TIF®100-20-10E Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.7 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness (Shore 00) | 65 | 35 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 5.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity(W/m-K) | 2.0 | ASTM D5470 | |
| 2.0 | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
