| 起源の場所: | 中国 |
| ブランド名: | Ziitek |
| 証明: | UL and RoHs |
| モデル番号: | TIF800TS |
| 書類: | TIF800TS_Data Sheet.pdf |
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | 0.1-10 USD/PCS |
| パッケージの詳細: | 24*13*12 センチメートルカートン |
| 受渡し時間: | 3～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/月 |
| 製品名: | AI プロセッサ AI サーバー電子機器の冷却と放熱のための熱伝導率 16.0W/mK のサーマル パッド | 熱伝導性: | 16.0W/mK |
|---|---|---|---|
| 硬度: | 45ショア00 | サンプル: | 無料サンプル |
| 色: | グレー | 厚さ: | 0.030インチ～0.200インチ/(0.75～5.0mm) |
| 密度: | 3.3g/cm3 | キーワード: | AI サーバーのサーマル パッド |
| 工事: | セラミック充填シリコーンエラストマー | 応用: | AI プロセッサ AI サーバー 電子機器の冷却と放熱 |
Products description

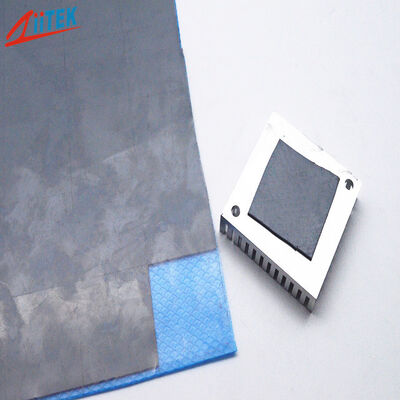

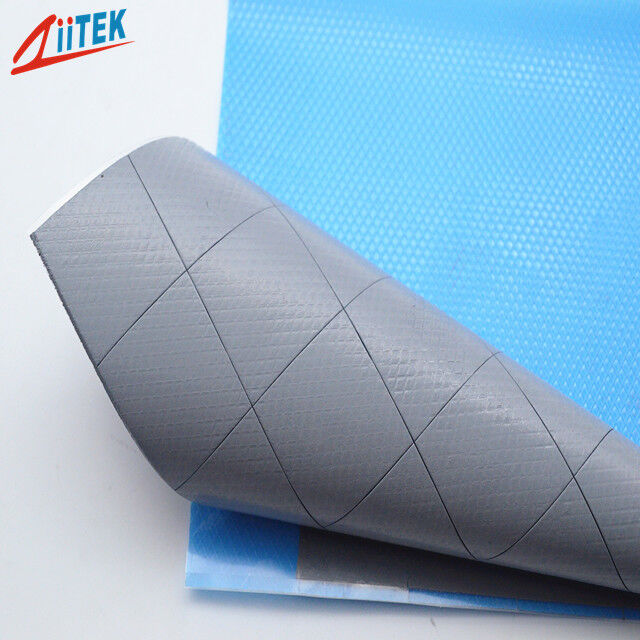

The TIF®800TS Series is a high-end compressible thermal pad that meets top-level cooling requirements while also ensuring excellent assembly workability. Through an innovative material formulation, it successfully achieves an ideal combination of ultra-high thermal conductivity and moderate hardness. This unique performance balance allows it to efficiently handle the cooling challenges posed by extremely high heat fluxes, while also possessing good mechanical _strength and compressibility, making it easy, to manufacture and install. It provides a thermal interface material solution with both outstanding heat dissipation performance and high reliability for high-power-density electronic devices.
| Typical Properties of TIF®800TS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.030 | 0.040~0.200 | ASTM D374 |
| 0.75 | (1.00~5.00) | ||
| Hardness (Shore 00) | 45 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 16.0W/m-K | ISO22007 | |
Product Specifications
Standard Thickness: 0.030" (0.75 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm ×406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
